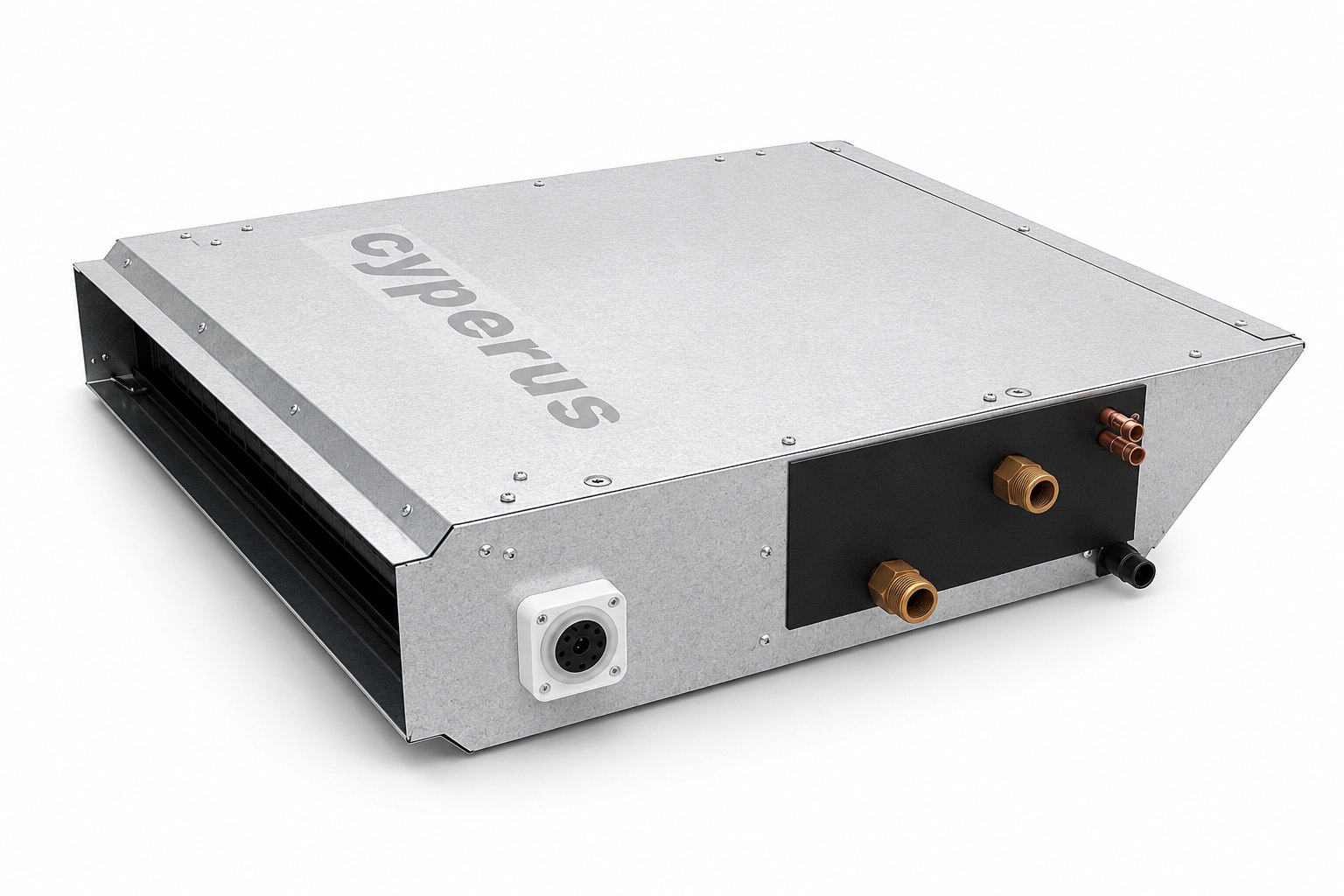

The Cyperus 200 CFM Slim Ceiling Fan Coil Unit is a modern air conditioning solution designed for residential, commercial, and office applications. With its ultra-slim design, compact dimensions, low noise operation, and efficient DC motor technology, this fan coil unit provides reliable cooling and heating performance while saving installation space.
The slim ceiling concealed fan coil is an ideal choice for projects where ceiling height and available installation space are limited. Its hidden installation inside false ceilings maintains the aesthetic appearance of the interior while providing comfortable air distribution.
The Cyperus 200 CFM Fan Coil Unit is equipped with a DC motor, efficient blower system, and optimized airflow performance to deliver comfortable indoor conditions throughout the year.
What Is a 200 CFM Ceiling Fan Coil Unit?
A ceiling concealed fan coil unit is an air conditioning device that uses chilled or hot water passing through a coil to cool or heat indoor air. The integrated fan circulates the conditioned air throughout the room.
The 200 CFM Slim Ceiling Fan Coil is designed for spaces requiring medium airflow capacity with a compact and modern structure.
Key features include:
-
Ultra-slim concealed ceiling design
-
Cooling and heating operation
-
DC motor technology
-
Low noise performance
-
Space-saving installation
-
Suitable for modern buildings
Technical Specifications of Cyperus 200 CFM Fan Coil Unit
| Specification |
Value |
| Model |
Cyperus 200 CFM |
| Air Volume |
210 CFM |
| Super High Air Volume |
285 CFM |
| Cooling Capacity |
1.7 |
| Heating Capacity |
2 |
| Water Flow Rate |
4.7 |
| Blower Fan |
1 Unit |
| Motor Power |
0.3 |
| Motor Type |
DC 12 |
| Noise Level (High / Medium / Low) |
40 / 37 / 35 dB |
| Pipe Diameter |
3/4 inch |
| Overall Dimensions |
549 × 636 × 130 mm |
| Screw Spacing |
415 × 28 mm |
Advantages of Cyperus Slim Ceiling Fan Coil 200 CFM
Ultra-Slim and Space-Saving Design
One of the main advantages of this model is its compact thickness. With only 130 mm height, the unit can be installed in areas with limited ceiling space.
This makes it suitable for:
-
Apartments
-
Office buildings
-
Hotels
-
Commercial spaces
-
Renovation projects
Efficient DC Motor Technology
The built-in DC motor provides smoother operation, better speed control, and improved energy efficiency compared with traditional motors.
Benefits of DC motor technology:
-
Lower energy consumption
-
Stable performance
-
Reduced operating noise
-
Better airflow control
Low Noise Operation
Comfortable indoor environments require quiet HVAC equipment.
The Cyperus 200 CFM fan coil operates with noise levels between:
-
Low speed: 35 dB
-
Medium speed: 37 dB
-
High speed: 40 dB
This makes it suitable for bedrooms, offices, and quiet environments.
Cooling and Heating Performance
The Cyperus 200 CFM ceiling fan coil provides both cooling and heating functions through a water-based HVAC system.
During summer:
During winter:
This makes the unit suitable for year-round climate control.
Applications of 200 CFM Slim Ceiling Fan Coil
Due to its compact size and efficient performance, this fan coil unit can be used in various applications:
Why Choose a Slim Ceiling Fan Coil Unit?
Modern buildings require HVAC systems that provide performance without affecting interior design.
The concealed ceiling installation of the Cyperus fan coil offers:
✔ Space optimization
✔ Hidden installation
✔ Modern appearance
✔ Comfortable airflow distribution
✔ Suitable performance for different environments
Slim Fan Coil Unit vs Standard Fan Coil Unit
| Feature |
Slim Ceiling Fan Coil |
Standard Fan Coil |
| Installation Space |
Requires less space |
Requires more space |
| Design |
Modern and concealed |
Traditional |
| Ceiling Installation |
More suitable |
Limited |
| Appearance |
Cleaner interior design |
More visible |
| Energy Efficiency |
Improved with DC motor |
Depends on model |
Important Factors Before Buying a 200 CFM Fan Coil
Before purchasing a ceiling fan coil unit, consider:
Room Size and Cooling Requirement
The selected capacity should match the building load and room conditions.
Installation Space
Check ceiling dimensions and available installation area before installation.
Noise Level
For residential and office applications, choosing a low-noise model is important.
Motor Type
DC motor models usually provide better efficiency and smoother operation.
Frequently Asked Questions (FAQ)
What is the suitable application for a 200 CFM ceiling fan coil?
The 200 CFM model is suitable for small to medium-sized rooms, offices, apartments, and commercial spaces depending on building conditions.
Does the Cyperus 200 CFM fan coil provide heating and cooling?
Yes, this model supports both cooling and heating operation through hot and chilled water systems.
Is this fan coil suitable for false ceilings?
Yes, the ultra-slim design makes it suitable for concealed installation inside false ceilings.
How noisy is the Cyperus 200 CFM fan coil?
The noise level ranges from approximately 35 to 40 dB depending on the selected fan speed.
Conclusion
The Cyperus 200 CFM Slim Ceiling Fan Coil Unit is a modern and efficient HVAC solution featuring a compact design, DC motor technology, low noise operation, and reliable cooling and heating performance.
Its ultra-slim structure makes it an excellent choice for residential, office, and commercial projects where installation space is limited.
